Description

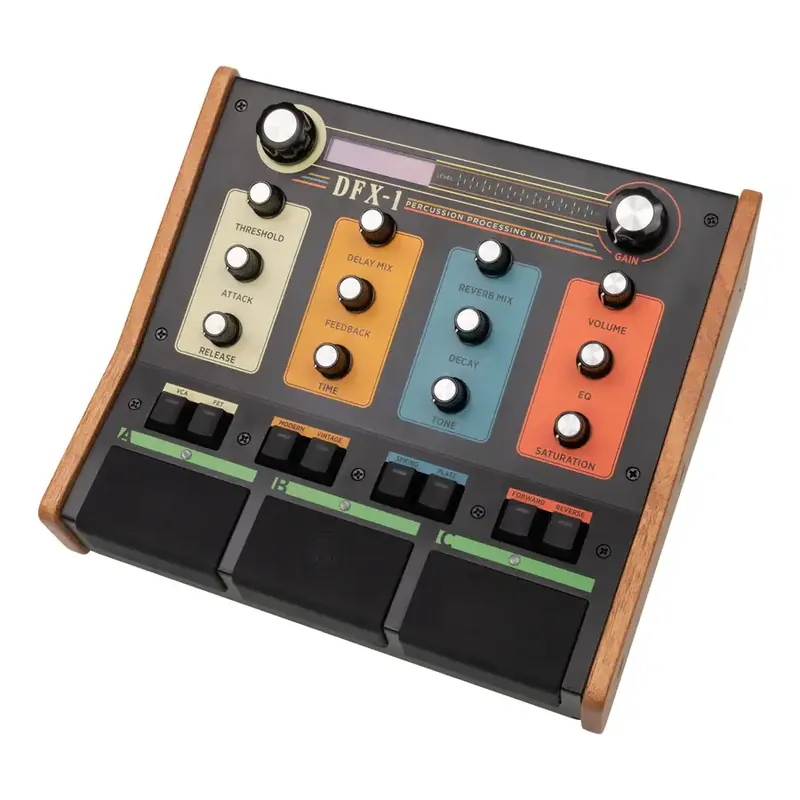

The DFX-1 is a multi-effect processing unit designed in collaboration with Aaron Sterling to add musical character and punch to any acoustic drum or percussion source. Craft everything from subtle to in-your-face drum sounds with studio-grade VCA & FET compression, two flavors each of Delay and Reverb, plus Saturation, Gating, an FX loop with customizable routing, and a flexible EQ. Use the DFX-1 anywhere on your kit with any microphone, whether it’s a squashed, spacious room mic, a tight, gated snare, or even routed outboard for processing in post. With a high-performance microphone preamp with phantom power, an effects loop to connect external outboard equipment, MIDI connectivity, and presets, a whole new world of sonic creativity becomes available right at your drum set.

Specifications

– Power: 9v 500mA Minimum
– The DFX-1 DOES include a 6ft (1.83m), 9v, 500mA stock power supply with worldwide adapters
– Frequency Response: 20Hz to 20kHz
– Sample Rate: 44.1kHz
– Bit Depth: 24 Bit
– Unbalanced: SNR: 98dB @ 1kHz +4dBu A-weight, THD+N: 0.0032% @ 1kHz +4dBu A-weight, Dynamic Range: 101 @ 1kHz +4dBu A-weight
– Balanced: SNR: 99dB @ 1kHz +4dBu A-weight, THD+N: 0.0025% @ 1kHz +4dBu A-weight, Dynamic Range: 102 @ 1kHz +4dBu A-weight
– Total Latency: 2.9ms
– Preamp Gain: +60dB
– XLR Input Impedance: 6.8k Ohms
– 1/4″ Line Input Impedance: 24k Ohms
– 1/4″ Instrument Input Impedance: 1M Ohm
– FX Loop Send Impedance: 220 Ohm
– FX Loop Return Impedance: 1M Ohm
– XLR Output Impedance: 220 Ohm
– 1/4″ Output Impedance: 220 Ohm
– Total Weight in Box: 5.7 lbs
– Box Dimensions: 312mm x 289mm x 115mm
– Unit Weight: 3.8 lbs
– Unit Dimensions(including knobs): 262mm x 232mm x 97mm
The DFX-1 DOES include a 6ft (1.83 m) stock power supply with worldwide adapters.
Note: The XLR and 1/4″ Outputs are not discrete outputs; they are simply split from the same source for your preferred connection type.
