Description

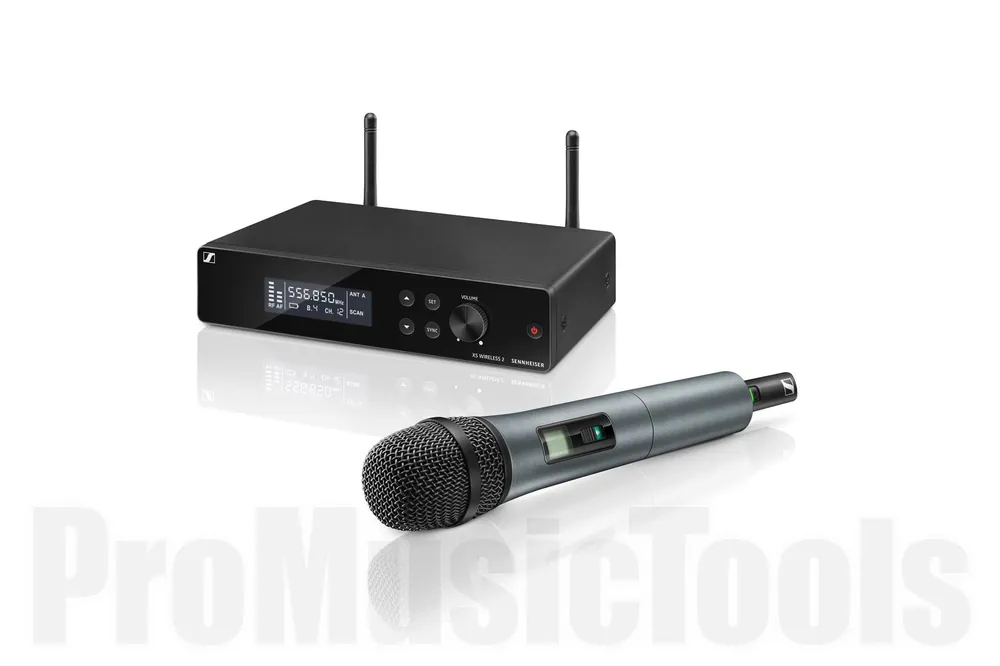

Sennheiser XSW 2-835-E Wireless vocal system

Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheisers renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure. True Diversity receiver in a metal housing and rackmount kit included.

• Excellent live sound featuring Sennheisers renowned evolution microphone capsules

• True diversity receiver with metal housing

• External antennas

• Automatic frequency management and synchronization via

• remote channel for easy setup

• Fully tunable over a wide range of UHF frequencies

• Rackmount kit included

• Up to 12 compatible channels

Receivers:

• Dimensions approx. 200 x 42 x 127 mm, microphone: approx. 260 x 50 mm
• Weight approx. 680g
• Power supply 12 V DC nom. / 300 mA
• Housing Metal, microphone: robust ABS
• AF frequency response 50 to 16,000 Hz (3 dB)

• Microphone dynamic
• Frequency response 50 to 16,000 Hz (3 dB)
• THD, total harmonic distortion0.9%
• Pick-up pattern cardioid
• Signal-to-noise ratio103 dBA
• RF output power 10 mW
• Switching bandwidth up to 24 MHz
• Operating time approx. 10 hrs
• Modulation wideband FM
• Output voltage 1/4 (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Frequency 8 frequency banks, each with up to 12 factory-preset channels
• Frequency range E: 821-832 MHz, 863-865 MHz
• Sensitivity < 3 V at 52 dB(A)rms S/N
• Squelch switchable from 3 dBV to 28 dBV (via Pilot Tone)
• Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Line 20 dB, switchable
• Input sensitivity 1.5 mV / Pa
• Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range 40 dB, adjustable in 5-dB steps
• Temperature Range operation: 0°C to +40°C storage: 20°C to +70°C
• Receiver Principle double superheterodyne
• Diversity principle True Diversity

Microphone:

• Weight approx. 245g
• Power supply 2 AA size batteries, 1.5 V
• AF frequency response 80-14,000 Hz

What’s in the Box:

• 1 receiver EM-XSW 2
• 1 handheld transmitter SKM 835-XSW
• 1 microphone clamp MZQ 1
• 1 power supply NT 12-5 CW
• 2 AA batteries
• 1 rackmount kit
• 1 pouch
