Description

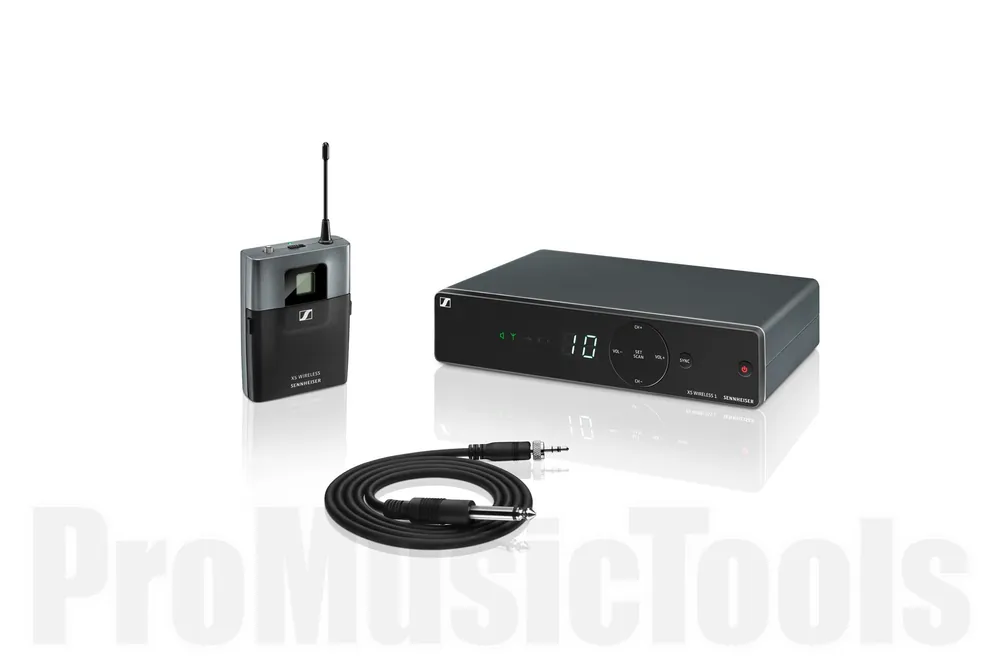

Sennheiser XSW 1-CI1-E PRO wireless instrument set

Amplify your tunes. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 INSTRUMENT SET is an easy to use all-inone wireless system for guitarists and bassists, excellent for live sound. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable.

• Compact bodypack transmitter, rugged instrument cable

• Antenna-switching diversity reception

• Integrated antennas

• Automatic frequency management and synchronization via remote channel for easy setup

• Selectable UHF frequencies within a large bandwidth

• Up to 10 compatible channels

• Dimensions Receiver: approx. 200 x 42 x 127 mm Bodypack transmitter: approx. 71 x 96 x 28 mm

• THD, total harmonic distortion0.9%

• Weight approx. 340g (receiver), approx. 95g (transmitter)

• Signal-to-noise ratio103 dBA

• RF output power 10 mW

• Switching bandwidth up to 24 MHz

• Operating time approx. 10 hrs

• Modulation Wideband FM

• Power supply Receiver: 12 V DC nom. / 300 mA Transmitter: 2 AA size batteries, 1.5 V

• Output voltage 1/4 (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

• Housing Rugged ABS housing

• Frequency 8 frequency banks, each with up to 10 factory-preset channels

• Frequency range E: 821-832 MHz, 863-865 MHz

• Sensitivity < 3 V at 52 dB(A)rms S/N

• SPL for peak deviation 130 dB

• Squelch adjustable from 3 dBV to 28 dBV (combined with pilot tone)

• Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)

• Input sensitivity 1.5 mV / Pa

• AF frequency response Receiver: 50 to 16,000 Hz (3 dB)

• Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps

• Audio adjustment range 45 dB, adjustable in 5-dB steps

• Line / Mic level 20 dB, switchable

• Temperature Range operation: 0°C to +40°C, storage: 20°C to +70°C

• Receiver Principle double superheterodyne Diversity principle Antenna switching diversity via internal antennas

• What’s in the Box: 1 receiver EM-XSW 1 / 1 bodypack transmitter SK-XSW / 1 instrument cable Cl1 / 1 power supply NT 12-5 CW / 2 AA batteries
