Description

Focus less on the wireless and more on the audio. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. Multiple hardware and software options create networkable solutions for nearly any stage, while equidistant channel spacing, auto scan, and Bluetooth® Low Energy sync automatically coordinate and set frequencies with the push of a button. Monitor your devices from a distance – even from your pocket – with tools like Wireless Systems Manager and Smart Assist app. The future of wireless is here.

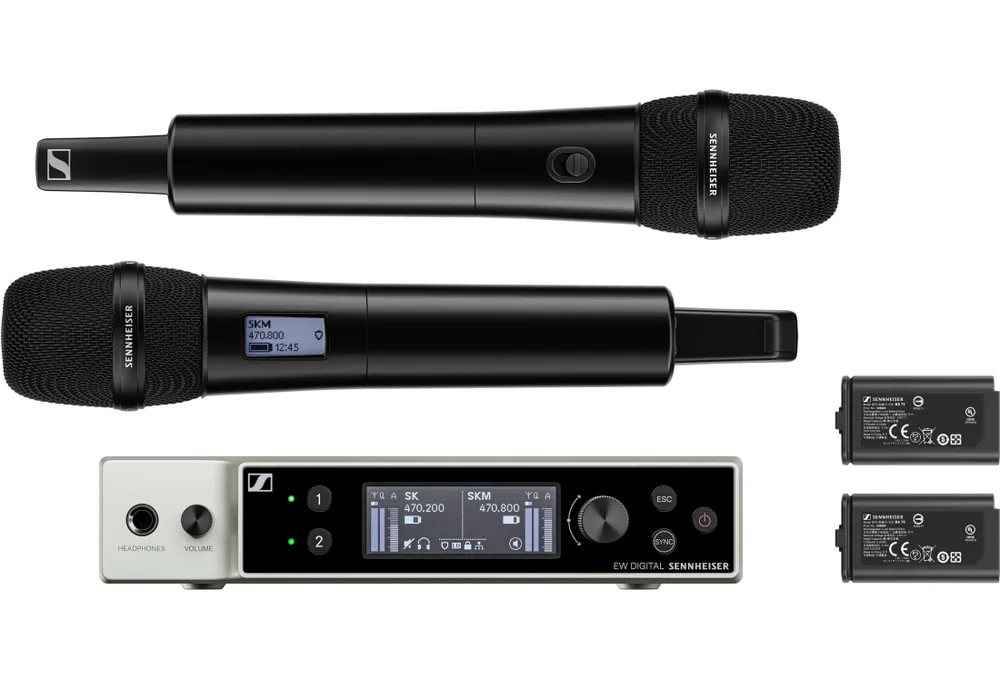

Perfect for presenters and singers. This set consists of 2 x EW-DX SKM-S (handheld with mute switch), 2 x MMD 835 capsule (cardioid, dynamic), 1 x EW-DX EM 2 rackmount receiver (2 channels) and 2 x BA 70 rechargeable batteries.
Features – EW-DX EM 2 (Rack Receiver)
2 channel half rack (9.5″)
Up to 88 MHz switching bandwidth
PoE IEEE 802.3af Class 3
Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
Clear and easy focused user interface with OLED display
Ethernet connectivity (IPv4 and IPv6)
Secure AES 256 encryption
External PSU 12V/1A
All-metal housing
Specifications – EW-DX EM 2
Input Voltage: 11 – 13 V or PoE IEEE 802.3af Class 0 (CAT5e or higher)
Input Current: < 1 A
Transmit Power (radiated): BLE: max. 10 mW EIRP
Audio Output Power: 18 dBu max.
Headphone Output: 2x 70 mW @ 32
Dimensions: 212 x 44 x 189 mm
Weight: approx. 1000 g (2.2 lbs) (without antennas and power supply)
Features – EW-DX SKM-S (Handheld Transmitter)
10mW RF power with up to 100m/328ft working range
Charging contacts for in-device charging with CHG 70N
Persistent eInk display – parameters visible on screen even when device is not powered on
Programmable mute switch on EW-DX SKM-S – customize the device depending on your professional needs
Function buttons – control all the transmitter settings directly from handheld microphone
Extended runtime with lithium-ion batteries – up to 12 hours operation time
Standard capsule interface – compatible with a wide range of Sennheiser and Neumann capsules
Mic input trim control
Metal housing
Specifications – EW-DX SKM-S
Input voltage: 2.0 – 4.35 V
Input current: < 300 mA
Power supply: 2 AA batteries 1.5 V
Occupied bandwidth: 200 kHz
Dimensions: 50 x 268 mm
Weight (without batteries): approx. 304 g
Included
– EW-DX EM 2 rack receiver
– 2 EW-DX SKM-S handheld transmitters
– 2 MMD 835 microphone modules
– 2 MZQ 1 microphone clamps
– 2 rod antennas
– Power supply with country adapters
– GA 3 rackmount set
– 4 rubber feet
– 2 BA 70 rechargeable battery packs
– Quick guide
– Safety guide
– Manufacturer declaration sheet
