Description

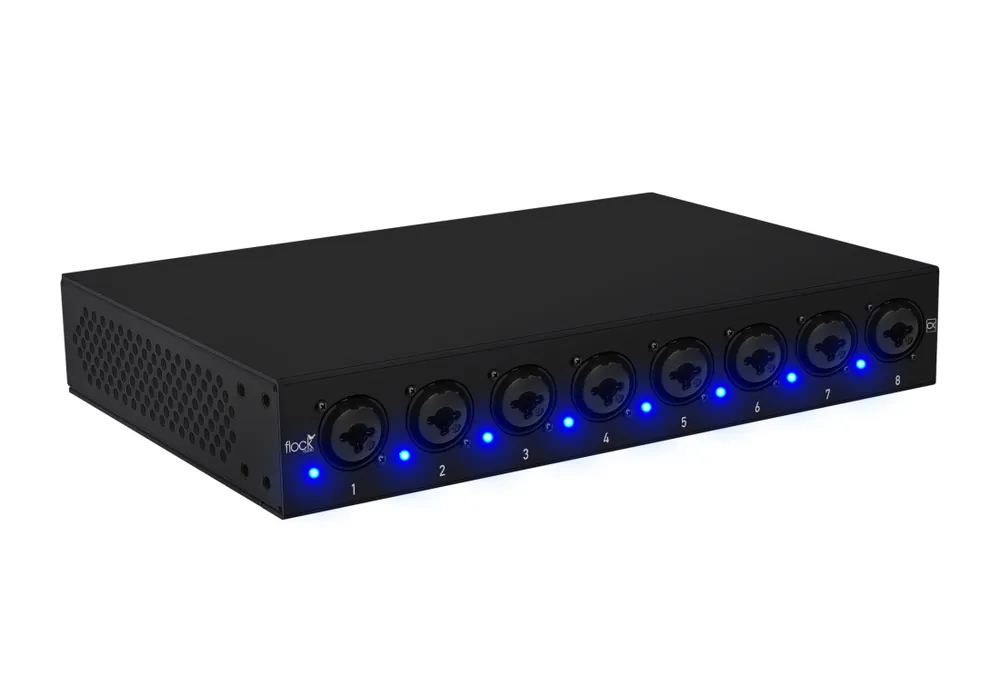

CX is an 8 Channel hardware module compatible with all PATCH Series models allowing all types of analog audio signal levels to be compatible to route through the PATCH Series (+4 Line level design) for the most clean and transparent analog audio routing experience. Assignable, customizable and controlled through the PATCH APP and PATCH APP DX Software.

Features

8 Channel mic/instrument level XLR/TRS combo inputs
8 Channel line level DB-25/D-SUB output Tascam standard pinout format connectors
8 Assignable independent channels of 48V Phantom power
PATCH APP & PATCH APP DX – Setup & controlling software (OSX, Windows, iOS)
Connect any type of analog audio signal to the PATCH Series via the CX hardware
No AD/DA Conversion, No Latency, 100% sonically transparent analog signal path
Stand alone desk module or rack ear mountable package design (Ears included)
External power supply w/ threaded locking connector (IEC cable included)
10 Ft. – USB 2.0 (USB-A to USB-B) cable for host control (Cable included)
Unit Dimensions (H x L x D): 1.75″ x 10.25″ x 7″ / 44.5 x 260 x 177.8 mm
Weight: 5 lbs / 2.27 kg
