Description

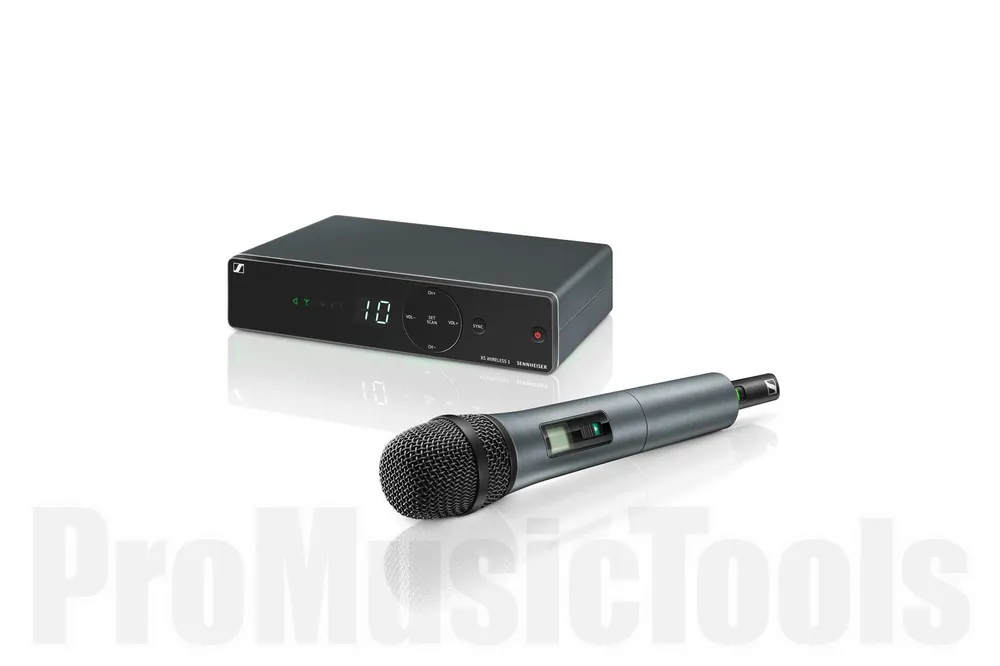

Sennheiser XSW 1-835-E PRO wireless vocal system

Easy to use all-in-one wireless system for singers and presenters. Rely on a solid transmission with up to 10 compatible channels in a stable UHF band

• Dimensions approx. 200 x 42 x 127 mm
• THD, total harmonic distortion0.9%
• Pick-up pattern cardioid
• Signal-to-noise ratio103 dBA
• RF output power 10 mW
• Switching bandwidth up to 24 MHz
• Operating time approx. 10 hrs
• Modulation wideband FM
• Output voltage 1/4 (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing rugged ABS housing
• Dynamic range dynamic
• Frequency 8 frequency banks, each with up to 10 factory-preset channels
• Frequency range E: 821-832 MHz, 863-865 MHz
• Sensitivity < 3 V at 52 dB(A)rms S/N
• Squelch adjustable from 3 dBV to 28 dBV (combined with pilot tone)
• Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity 1.5 mV / Pa
• Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range 45 dB, adjustable in 5-dB steps
• Line / Mic level 20 dB, switchable
• Temperature Range operation: 0°C to +40°C, storage: 20°C to +70°C
• Receiver Principle double superheterodyne
• Diversity principle Antenna switching diversity via internal antennas

• What’s in the Box: 1 receiver EM-XSW 1 / 1 handheld transmitter SKM 825-XSW or SKM 835-XSW / 1 microphone clamp MZQ 1 / 1 power supply NT 12-5 CW / 2 AA batteries
