Description

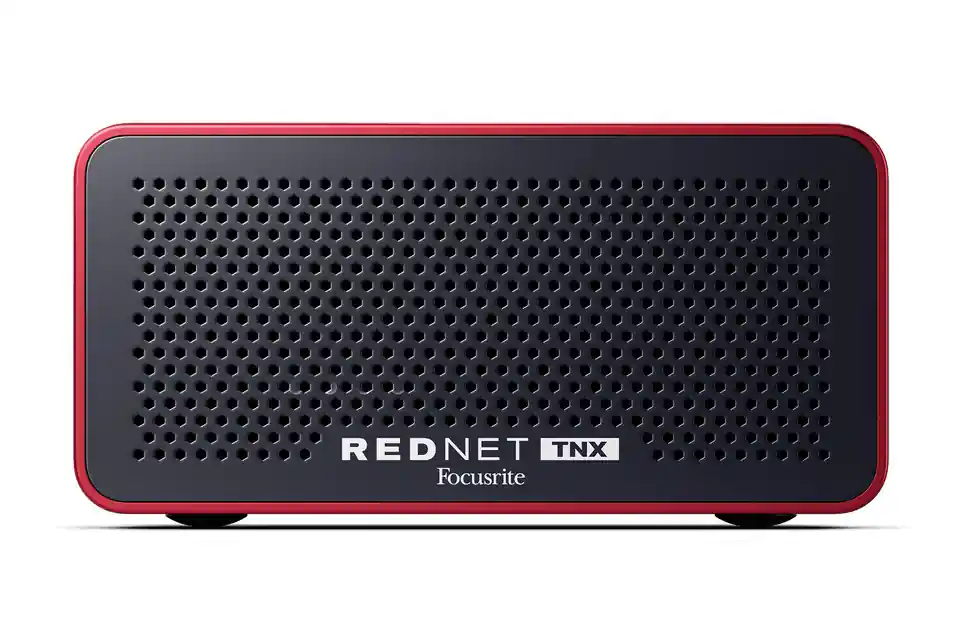

Designed for use in immersive audio, broadcast, post-production, or live sound, RedNet TNX brings the performance of RedNet to a more compact and portable format. RedNet TNX is a portable Dante® interface that delivers high-resolution, ultra-low latency Dante audio with 128×128 channels at 24-bit/192kHz straight out of the box. For larger systems, a paid Dante Ready upgrade unlocks 256×256 channels at 24-bit/96kHz – all via a single Thunderbolt connection for powerful and versatile audio workflows.
Installation is simple and secure, thanks to rack-mount compatibility, Sonnet ThunderLok support, and integrated M5 mounting points. Whether you’re working in a fixed studio, an educational facility, or a mobile environment, TNX adapts to your setup.
Broadcast-ready AoIP support
RedNet TNX is fully compatible with AES67 and SMPTE ST 2110 (with DDM), making it suitable for broadcast facilities and production houses moving to IP-based audio systems. Its small footprint and Thunderbolt connectivity make it just as effective on location as it is in the control room.

Key Features

128×128 channels at 24-bit/192kHz with ultra-low latency
Dante Ready upgrade: 256×256 channels at 24-bit/96kHz
Thunderbolt connectivity for macOS and Windows (Intel & Apple Silicon)
Dual Thunderbolt ports with 15W charging and daisy-chaining
Dual Ethernet ports for switched or redundant Dante modes
Audio and control over a single network cable
AES67 and SMPTE ST 2110 compliant (DDM required)
Rack-mountable with Sonnet ThunderLok support
Compatible with RedNet Control software

What’s in the box

– RedNet TNX unit
– 2m Thunderbolt 3 cable
– 2m cat6A Ethernet cable
– External DC power supply and cable

Specifications

Simultaneous Inputs & Outputs
128×128 (all sample rates)
256×256 (up to 96kHz) with a paid upgrade
Digital Performance
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit
Dante Connectivity
2 x Ethernet standard RJ45 connectors (compatible with Cat 5e and above)
Driver Compatibility
Multi-client ASIO and WDM (Windows)
CoreAudio (Mac)
Rear Panel I/O
2x Thunderbolt 3 ports (Provide 15W of power)
2 x Sonnet ThunderLok
2x Network Active LED indicators (Primary/Secondary)
2x Network Lock LED indicators (Primary/Secondary)
1x DC power inlet
1x Factory Reset button
Heat Performance
Max ambient temperature: 50 degrees Celsius/122 degrees Fahrenheit
Miscellaneous
Exposed threads for rack shelf/cradle mounting
Dimensions
Width: 144mm (5.67″)
Depth: 212.4mm (8.36″)
Height: 71.6mm (2.82″)
Weight: 1.49kg (3.3 lbs)
Power requirements
Powered by external DC power supply
