Description

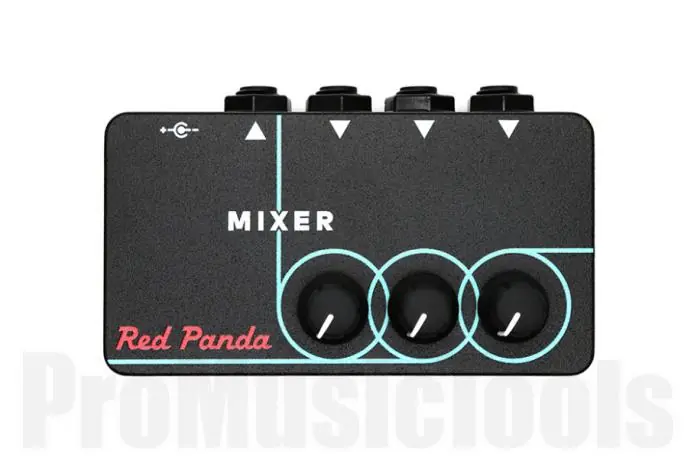

The Bit Mixer is a small, high-quality mixer designed for pedalboards. It features ultra-low distortion, low noise op-amps, its high-impedance inputs are designed for guitar, but work with line level signals as well. The Bit Mixer allows you to connect multiple instruments to one amp or combine parallel effect chains.
- 3-input effects mixer
- analog dry path
- high input impedance 1 MOhms
- controls for Volume for each input
- 3 x 6.3 mm mono input jacks
- 1 x 6.3 mm mono output
- internal status LED visible below the power jack
- metal housing
- power supply via optional 9-18V DC adapter, 2.1 mm x 5.5 mm barrel plug, polarity (-) center
- current draw 40 mA
- dimensions (L x W x H) 66 x 112 x 38 mm
- weight 250 g
- made in USA
