Description

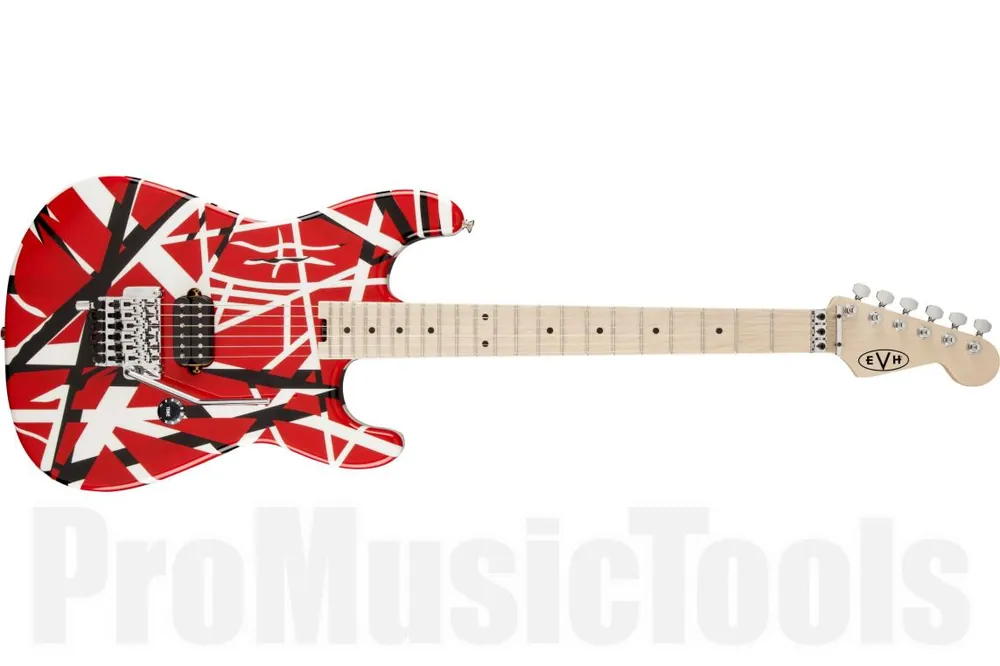

Striped Series Red with Black Stripes

With a career of being copied, the EVH Striped Series guitars put Eddie Van Halen’s historic and authentic style in your hands … These are high powered, high-performance machines as kickbutt to look at as they are to play.
The Striped Series guitar features a basswood Stratocaster®-style body decked out in Eddie’s famed striped graphicsRed with Black Stripes, Black with Yellow Stripes and White with Black Stripes.
These unique guitars also have a graphite-reinforced bolt-on quartersawn maple neck with a hand-rubbed oil finish on the back, 12″-16″ maple fingerboard with 22 jumbo frets and black dot inlays and a thumbwheel truss rod adjustment wheel for convenient neck relief tweaks.
Powered by a single ferocious direct-mount Wolfgang® humbucking bridge pickup, the Striped Series guitars also feature a single skirted Strat-style volume control knob (labeled « tone ») that houses a 500K EVH® Bourns® low friction pot with treble bleed circuit, single-ply black pickguard (White with Black Stripes model only), bar string retainer and Floyd Rose® locking nut, EVH-branded Floyd Rose® locking tremolo with EVH D-Tuna®, EVH die-cast tuners, chrome hardware, vintage-style strap buttons, EVH neck plate and licensed Fender® Strat® headstock. The White with Black Stripes model also features a top-mount output jack.

• Body: Basswood
• Body Finish: Gloss Urethane
• Control Knobs: Black Stratocaster®-Style Skirt (Labeled « Tone »)
• Fingerboard: Maple
• Hardware Finish: Chrome
• Neck Finish: Hand-Rubbed Satin Urethane
• Position Inlays: Black Dot
• Body Shape: Other
• Neck Material: Quartersawn Maple
• Neck Shape: EVH® Modified « C » Backshape
• Scale Length: 25.5″ (648 mm)
• Fingerboard Radius: 12″-16″ Compound Radius (304.8 mm to 406.4 mm)
• Number of Frets: 22
• Fret Size: Jumbo
• String Nut: Floyd Rose® R3 Locking
• Nut Width: 1.6875″ (42.86 mm)
• Truss Rod Wrench: 2.5 mm Hex
• Bridge Pickup: EVH® Wolfgang® Humbucking
• Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit
• Pickup Switching: None
• Pickup Configuration: H
• Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
• Tuning Machines: EVH®-Branded Gotoh®
• Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
• Included Accessories: Tremolo Arm, Hex Keys & User Manual
• Case/Gig Bag: Optional EVH® Striped Hardshell (p/n 022-6100-506); Optional EVH® Black Gig Bag (p/n 022-1512-006)
