Description

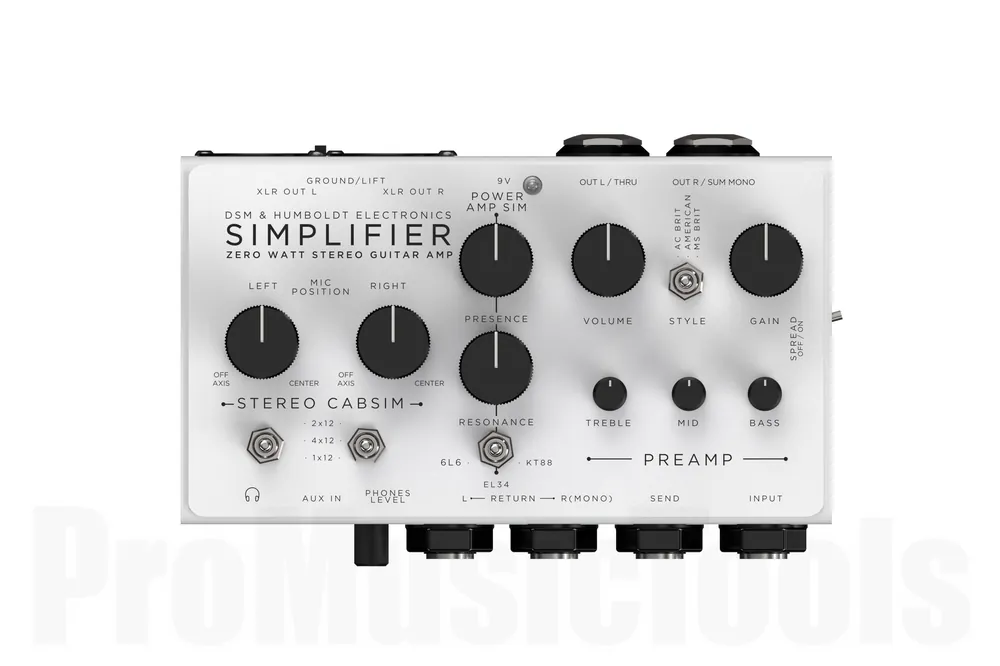

Integrate your pedalboard adding full stereo routing directly to a PA System, Amps, Audio Interfaces or anyting you need with its 4 simultaneous outputs (2 x XLR, 2 x 1/4 bypasseable outs), stereo effects loop, headphones out and aux in.
- Preamplifier, power amplifier and cabinet simulator
- Fully analog preamplifier with 3 classic voicings: AC-Brit (British Class A 2×12 « Combo), American (American Blackface Combo) and MS Brit (British Stack)
- Zero watt stereo power amplifier: a precise approximation of the interaction between the power tubes, the output transformer and the global feedback that creates a specific frequency response for different tubes and speakers
- 3 tube voicings: 6L6, EL34 & KT88
- Spread Control to get a « » double box « sound with realistic physical separation
- Stereo speaker simulation with 3 voicings: 1 x 12 « , 2 x 12 » & 4 x 12 « and microphone position control on each side
- the speaker simulation can be switched to the jack outputs to use them either as a DI out or with an additional amplifier
- Controls: Gain, Volume, Bass, Mid, Treble, Presence, Resonance, Mic Position, Phones Level
- Switch: Pre-Amp Voicing: Ac Brit / American / MS Brit
- Switch Tubes Voicing: 6L6 / EL34 / KT88
- Switch Cab Voicing L & R (2 x): 1x 12 « , 2x 12 », 4x 12 «
- Bags for spread on / off and ground lift
- LED: On
- Input: 6.3 mm jack
- Output L & R: 2x XLR and 2x 6.3 mm jack
- FX Send: 6.3 mm jack
- FX Return L & R / Mono: 2x 6.3 mm jack
- Aux in: 3.5 mm stereo jack
- Phones: 3.5 mm stereo jack
- Mains adapter connection: barrel plug socket 5.5 x 2.1 mm, negative pole inside
- Current consumption: 80 mA
- Dimensions (W x D x H): 115 x 65 x 55 mm
- Weight: 430 g
