Description

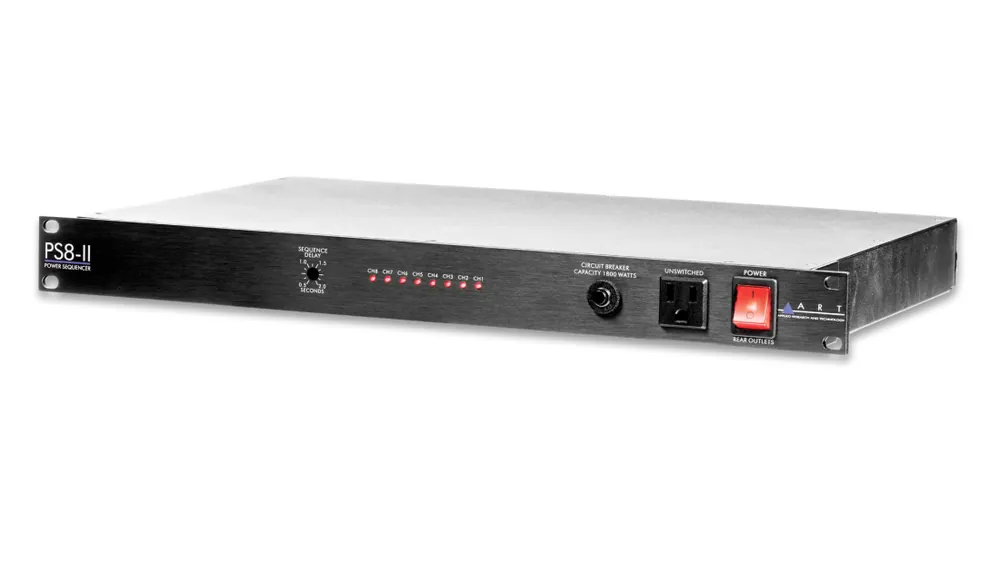

The ART PS8-II provides controlled power sequencing to eight rear AC outlets. Each output’s power up / power down is delayed by a fixed amount determined by the front panel user definable Sequence Delay control. This allows you to control the power up and down sequence in a system to smooth out inrush currents and minimize turn-on transients that may damage sensitive equipment.
The PS8-II is also a full-featured power conditioner, fast acting breaker, EMI and RFI filter, as well as offer surge and spike protection to protect your system. By design it is ideal to sequence and therefore protect a wide range of equipment including sensitive tube preamps, powered speakers, large displays, or digital systems.
Features
Adjustable Sequence Delay Range from 0.5 to 2.0 Seconds per Output
Eight Individually Sequenced Outputs with Front Panel LED Indicators for Each
Rear Mount Remote Control Terminal Block for Remote Sequence Control
Front Panel Unswitched and Unregulated Output
1800 Watt Total Power Capacity
Front Panel Master Breaker and Power Switch
EMI and RFI Filtering
Surge and Spike Protection
Specifications
Power Capacity:1800 Watts
Maximum Load: 15 Amps / 1800 Watts (@ 120 VAC)
Outlets: 8 x Rear Mounted Individually Sequenced, 1 x Front Mounted Unswitched
Delay Time: 0.5 to 2.0 Second Variable Pot
Remote Switch: On/Off Function
Remote Terminal: Rear Mounted 4-pin Euro Block Connector
Line Filtering: RFI / EMI
Power Requirements: North America – 105 to 125 VAC / 60 Hz (Export units configured for country of destination)
Dimensions: 1.75″H x 19.0″W x 11.5″D (165mm x 482mm x 292mm)
Weight: 9.2 lbs (4.2 kg)
