Description

Drive BOSS and Roland 13-Pin GK Devices from the Next-Generation Serial GK Interface

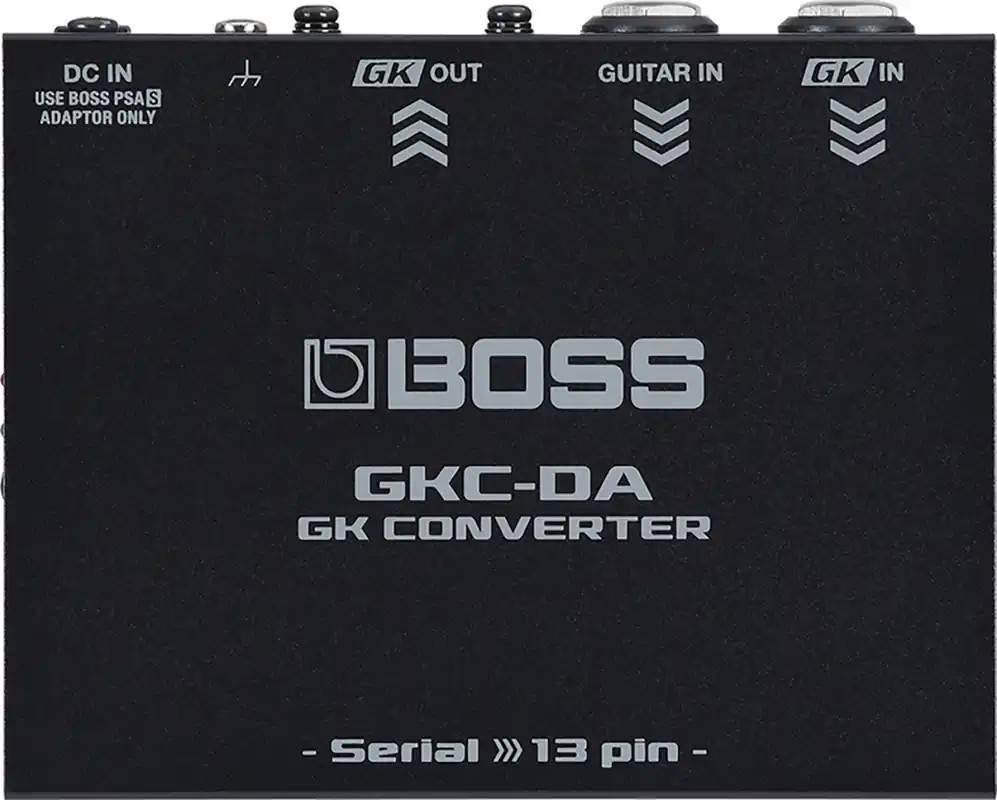

The latest BOSS guitar synthesizer products feature the Serial GK digital interface, a newly developed connection method that delivers evolved performance over the analog 13-pin GK interface used in earlier BOSS and Roland guitar synth and modeling products. The GKC-DA GK Converter allows you to drive a 13-pin GK device such as the BOSS SY-1000 or GP-10 using the Serial GK output on a GK-5 or GK-5B Divided Pickup or the GM-800 Guitar Synthesizer.

Features

Converts the Serial GK digital interface to the classic 13-pin analog GK interface
Serial GK input and 13-pin GK output
Instrument input for passing normal guitar/bass pickup sounds to the 13-pin output
Compact and rugged metal design

Specifications

Nominal Input Level: GUITAR IN: -10 dBu
Maximum Input Level: GUITAR IN: +16 dBu
Input Impedance: GUITAR IN: 1 M ohm
Indicators: POWER indicator / GK CONNECT indicator
Current Draw: 390 mA
Power Supply: AC adaptor
Dimensions: 115 x 92 x 36 mm (4-17/32 x 3-5/8 x 1-7/16″)
Connectors
GK IN jack: 1/4-inch TRS phone type (for BGK cable only)
GK OUT connector: 13 pins DIN type
GUITAR IN jack: 1/4-inch phone type
DC IN jack
USB port: USB Micro-B (program update only)

Accessories

– AC adaptor
– Owner’s Manual
– Leaflet « USING THE UNIT SAFELY »
