Description

Unlike any other In Ear Monitor, the 3DME Gen 2 continues its unique position as the only IEM with built in, active ambient microphones with an App to customize the mix. Gen 2 adds a monitor bypassing capability, whereby limiter and EQ functions can still be controlled from Front of House or a Monitor position when activated.
Also added is a lower limiter threshold, start up squeal suppressor (useful if the 3DME is turned on prior to inserting the ear pieces), an extended battery life to full eight hours on a single charge and an improved CROS function for Musicians with hearing limits in one ear.
Features
Active Ambient technology provides controlled 3D ambience with full earphone isolation
Embedded binaural microphones capture full frequency range, full dynamic range natural ambience with accurate 3D directionality
Full-range drivers provide reference-quality sound without crossover distortions
Compact bodypack processing unit combines a monitor mix with the ambient sound
Patented active signal processing enables distortion-free ambience capture up to 135 dB-SPL
Monitor Out jack provides for monitoring of the complete reproduced sound, including by the dB Check
Intuitive smartphone app sets multiple stored body pack processing options
Selectable ambience level, with left, right adjusted together or separately
Selectable limiting of maximum average reproduced levels, with left, right thresholds adjusted together or separately, and with the limiting action linked between channels or independent
Multiband frequency equalization of the reproduced sound, with left, right adjusted together or separately
Selectable bypassing of all Monitor signal processing, for unimpeded outboard control
Selectable CROS connection for unilateral hearing loss compensation
App-activated Seal Test tones enable confirmation of earphone fit and sealing
Body pack provides ambient level up/down buttons, programmed either for step-wise action or pre-selected levels, for quick in-use adjustment of ambience level
Body pack has a rechargeable Li-Ion battery and Bluetooth interface
Body pack provides LED indication of battery state-of-charge, charging status, and USB power
Specifications
Frequency Response: 20 Hz – 20 kHz
Microphone Input Overload: 135 dB-SPL
Maximum Output, 500 Hz: 122 dB-SPL
Microphone Equivalent Input Noise: 27 dBA-SPL
Monitor Equivalent Input Noise: -104 dBV(A) (EQ disengaged), -101 dBV(A) (EQ engaged)
Output Noise: 20 dBA-SPL (EQ disengaged), 23 dBA-SPL (EQ engaged)
Acoustic Insertion gain: Off, -24 dB to +12 dB in 16 steps
Monitor Sensitivity, 500 Hz: 102 dB-SPL for -20 dBV (100 mVrms) input
Monitor Input Impedance: 10 kOhm
Limiter Type: Adaptive attack, average responding, frequency selective
Limiter Threshold: 76 dB-SPL to 104 dB-SPL in 8 steps and Off
Maximum Limiter Gain Reduction: 20 dB
Multiband EQ: +/-12 dB at 60, 140, 330, 770, 1800, 4300, 10 kHz
Latency: 0 (EQ disengaged), 540 usec (EQ engaged)
Operating Time (from full charge): 8 hours
Charge Time (fully depleted battery): 5 hours
Battery State-of-Charge Indication: Four LEDs, with flashing low battery warning
Wireless Connectivity: Bluetooth

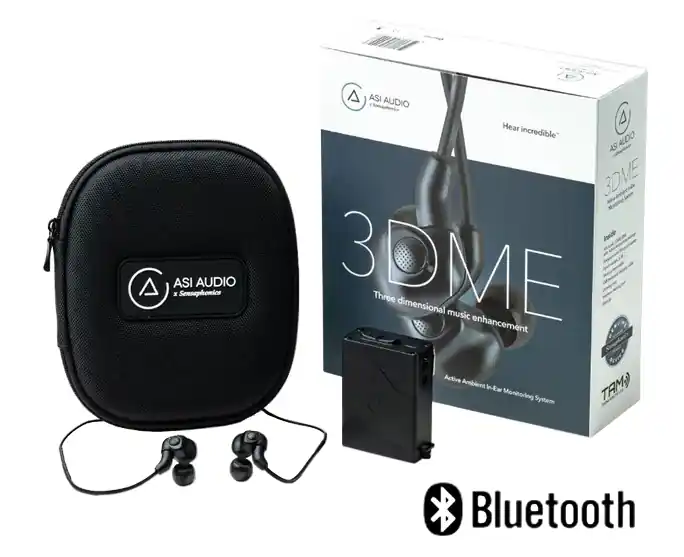

Includes
– In-Ear monitors
– Bodypack mixer
– Foam ear tips
– Stereo jumper cable
– USB-C charging cable
– Carrying case
– Earpiece cleaning tool
– Shirt clip
