Description

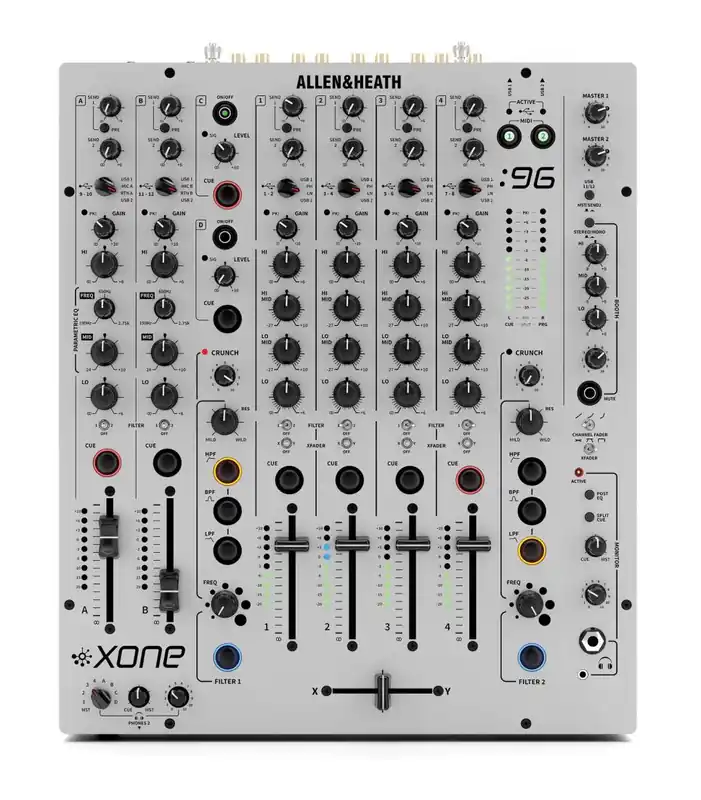

Xone:96 enables users to easily connect their entire rig, from laptops and turntables, to pedals, synths and drum machines. There are two dedicated FX sends, four stereo input channels with 4-band EQ, two stereo inputs with all-new 3-band parametric EQ, two auxiliary stereo return channels and a separate master insert for outboard FX hardware.
Underlining the professional club credentials of Xone:96 is a new, second and completely independent headphone cueing system, which taken alongside the dual soundcard, allows for smoother set transitions and back-to-back performances. Dedicated booth outputs using a new 3-band booth EQ facilitate the tuning of a venue’s monitor rig and artists using complex, hybrid, multi-channel software will celebrate the simplicity of using a single USB to connect their computer to Xone:96.
As would be expected, Xone:96 features industrial build quality, which can be relied upon to comfortably withstand the demands of packed schedules, night after night.
Key Features
Legendary Xone analogue design
6+2 channel layout
Dual 24 channel, 32Bit/96kHz, Hi-Speed USB internal soundcards with MIDI Control & X:Link connectivity
Traktor Scratch Certified
Classic dual XONE:VCF Voltage Controlled Filters now with added CRUNCH distortion
Four stereo input channels with refined XONE 4-BAND EQ
Two independent CUE systems allow two DJ’s to monitor independently
innoFADER Cross Fader and new custom designed 60mm linear VCA performance channel faders
Specifications
Type: Analogue
Channels: 6 + 2
EQ:
– Channel 1-4, 4-Band EQ
– Channel A-B, 3-Band Parametric EQ
USB Soundcards:
– Dual 24 Channel (12 in / 12 out)
– Hi-Speed USB2.0 / Mac Class Compliant
– 32bit / 96kHz
– MIDI over USB
Line Inputs:
– 4 x RCA (CH 1-4)
– 4 x 1/4″ TRS (CH A-D) Mono/Stereo
Phono Inputs:
– 4 x RCA (CH 1-4)
– LN/PH Switch for DVS
USB Inputs: 6 x USB (CH 1-4 + CH A CH B)
Mic Input: 2 x XLR
Master Output: 1 x XLR (Balanced)
Master 2 Output: 1 x 1/4″ TRS (Balanced)
Booth Output: 1 x 1/4″ TRS (Balanced)
Record Output: 1 x RCA (Un-balanced)
Master Insert: 1 x 1/4″ TRS
MIDI Out: 1 x 5-Pin DIN
Send/Return I/O:
– 2 x 1/4 TRS Send
– 4 x 1/4 TRS Return
– 1 x LN/Hi-Z Switch (SND1/RTNA)
Filter
– 2 x VCF Filter
– HPF / BPF / LPF
– Adjustable Frequency & Resonance
– Assignable CH 1-4 + CH A-B
– CRUNCH (Controlled Harmonic Signal Distortion)
X-Link: 1 x RJ45
Headphones
– 2 x 1/4″
– 2 x 3.5mm
– Split Cue Monitoring
Channel Faders: 60mm VCA / Replaceable
Chanel Meters: 9 Segment LED
Channel Fader Curve: 3 Types
X-Fader: InnoFADER / 45mm VCA / Replaceable
X-Fader: Curve 3 Types
Earth Ground Terminals: x 2
Headroom: 20dB
AC Mains
– 100 to 240V
– AC 50/60Hz
– Consumption 45W max
Mains Adaptor: 3 pin IEC socket
Dimensions (W x D x H): 336mm x 410mm x 109mm (13.25″ x 16.2″ x 4.3″)
Weight: 7 kg (15.4 lbs)
