Description

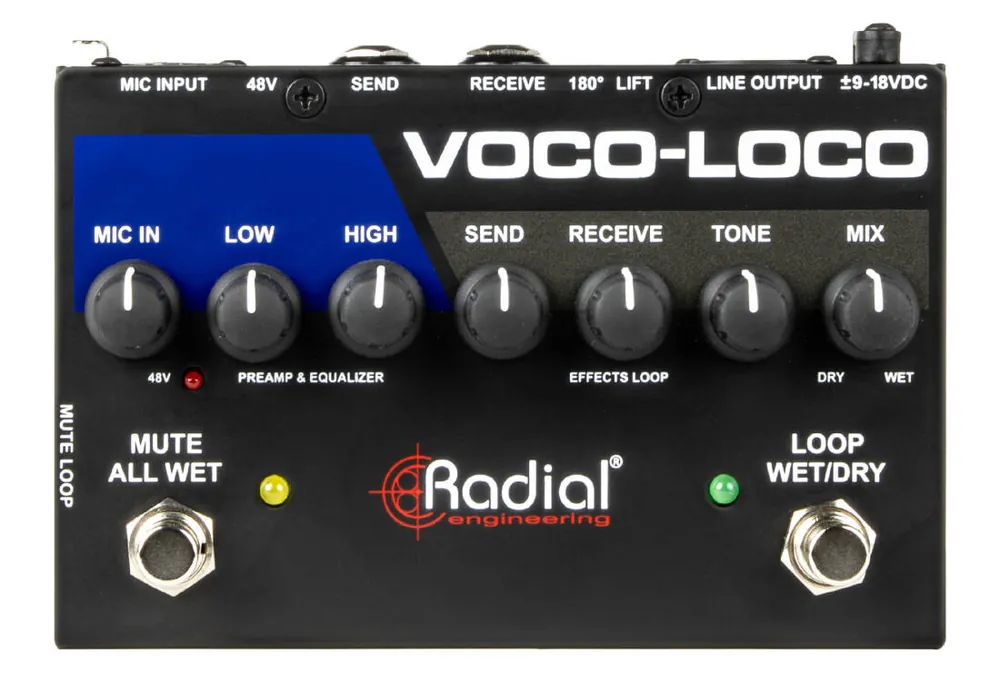

The Voco-Loco Mk2 is an updated version of the original Voco-Loco foot-controlled microphone preamp and effects loop switcher that enables a vocalist or acoustic instrumentalist to incorporate guitar effects pedals into their signal path.
Boasting a new look, additional gain, and a locking XLR connector for more secure connections, the Voco-Loco Mk2 also features more robust phantom power handling to deal with even the most demanding condenser mics. The Voco-Loco Mk2 can be powered by 9V and 18V power supplies, but still ships with its own 15V PSU.
Just like the original device, the Voco-Loco Mk2 combines a microphone preamp with a guitar pedal effects loop, allowing a lead vocalist, sax or trumpet player to add guitar pedals to their audio signal path just like an electric guitarist adds effects for soloing. Simply plug your mic into the Voco-Loco Mk2 via the device’s locking XLR input, connect your effects pedals using standard 1/4″ guitar cables, and then send the output from the Voco-Loco Mk2 to the input on your mixer. With the touch of a footswitch, this lets you add your favorite delay, reverb, distortion, or wah-wah to any mic’d up instrument or vocal – the options are only limited by your imagination.

Features

Studio quality mic preamp
Effects send & receive for pedals
Wet dry mix control to blend effects
Optimized signal path
Compatible with 9V-18V power supplies

Specifications

Audio circuit type: Integrated Op-Amp with Class A FET input circuit
Frequency response: 20Hz ~ 20kHz
Dynamic range: 100dB
Gain: 52dB
Clip Level: +15dBu
Total harmonic distortion: 0.005%
Intermodulation Distortion: 0.005%
Phase Deviation: 8° @50Hz
Input Impedance: 10K-Ohms, 100K (FX Loop)
Output Impedance: 300 Ohms, 3000 Ohms (FX Loop)
Common Mode Rejection Ratio: -73dB @55Hz
Equivalent Input Noise: -120dBu
Noise Floor: -85dBu
Maximum Input: +10dB
